pic kontrollü çok amaçlı ac dimmer devresi şeması

pic kontrollü çok amaçlı ac dimmer devresi şeması

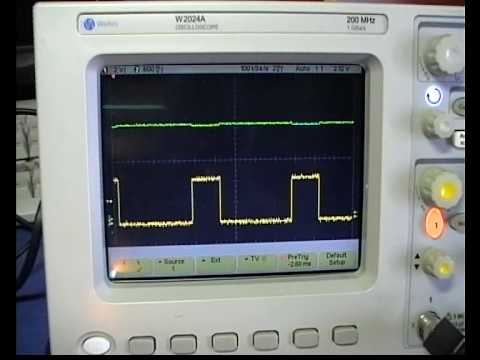

video

malzeme listesi
dirençler
R1 Resistor 1 KOhm 1/4 Watt 5% Carbon Film
R2 Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R3 5 KOhm potentiometer
R4 Resistor 4.7 KOhm 1/4 Watt 5% Carbon Film
R5 Resistor 470 KOhm 1/4 Watt 5% Carbon Film
R6 Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R7 2.2 KOhm potentiometer
R8-9 Resistor 220 Ohm 1/4 Watt 5% Carbon Film

kondansitörler
C1 100 pF ceramic capacitor
C2 1000 uF 16 Volts electrolytic capacitor

entegre ve elemanlar
IC1 7805 Positive Voltage Regulator [Positive voltage regulator]
IC2 PIC12F615 Microcontroller [Microchip microcontroller]
OK1 MOC3021 Random Phase Optoisolator TRIAC Driver Output [Random Phase Optoisolator TRIAC Driver Output]
Transistors - TRIACs
Q1 BC548 Switching and Applications NPN Epitaxial Transistor [Switching and Applications NPN Epitaxial Silicon Transistor]
T1 BT136D Sensitive gate TRIAC [Sensitive gate TRIAC]

diotlar
D1 1N4001 General Purpose Diode Rectifier [General Purpose Diode Rectifiers]
B1 2W10M Single Phase 2 Amps Silicon Bridge Rectifier

PIC Dimmer - kaynak kodu asm


PIC Dimmer - bin dosyası hex

kaynak: http://pcbheaven.com/circuitpages/PI...led_AC_Dimmer/
